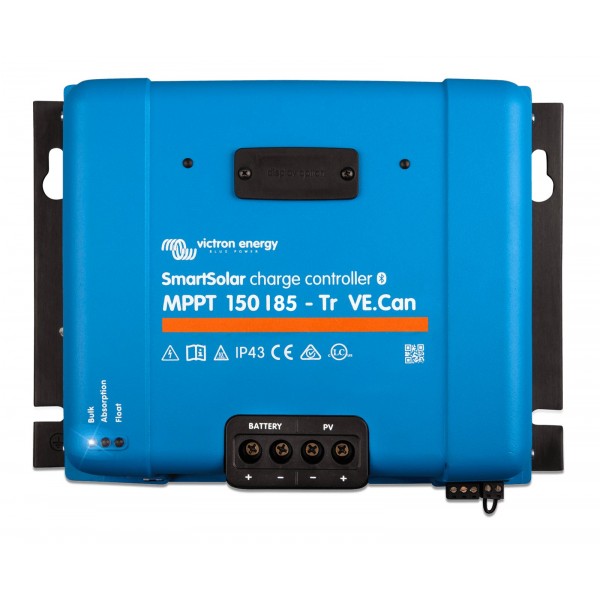

Victron SmartSolar MPPT 150/85-Tr VE.Can

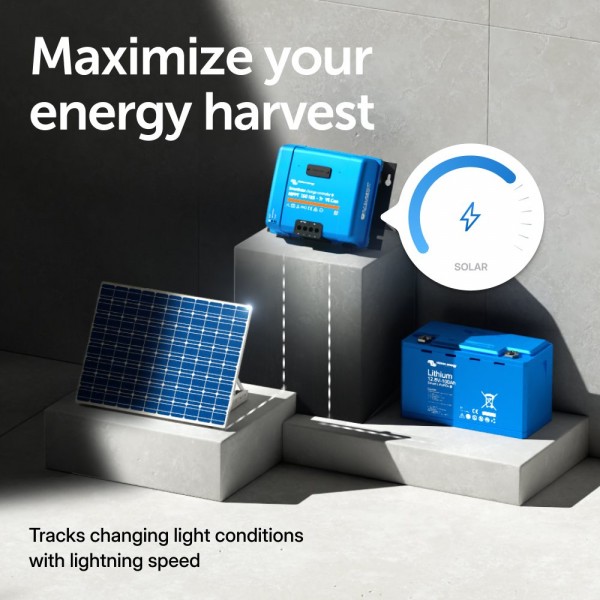

Victron Energy SmartSolar MPPT 150/85-Tr VE.Can – 150 V / 85 A solar charge controller is a high-performance MPPT solar charge controller with a maximum PV input voltage of 150 V and a rated battery charge current of up to 85 A. Its ultra-fast maximum power point tracking extracts as much available energy as possible from the solar array, including under rapidly changing light conditions and partial shading.

The controller supports 12 V, 24 V, 36 V and 48 V battery systems. 12/24/48 V are selected automatically, while 36 V is selected manually. Built-in Bluetooth Smart, VE.Can and VE.Direct interfaces provide convenient configuration, monitoring, firmware updates and integration with Victron Energy GX devices and other system components.

Key benefits

• Ultra-fast MPPT tracking for optimum solar energy harvesting.
• Up to 98% maximum efficiency with natural cooling.
• Maximum PV short-circuit current of 70 A.
• Nominal PV power: 1200 W at 12 V, 2400 W at 24 V, 3600 W at 36 V and 4900 W at 48 V.
• Fully programmable multi-stage adaptive charging algorithm with eight preset algorithms.
• Deeply discharged battery recovery function, including charging initiation at 0 V when the cells are not permanently sulphated or damaged.

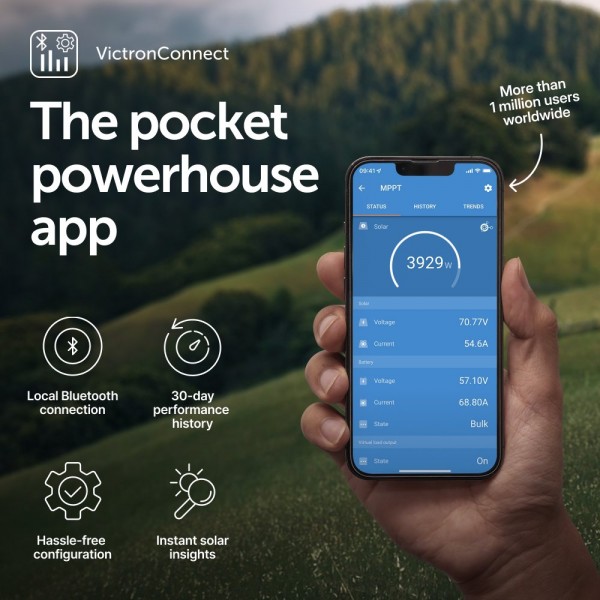

• Built-in Bluetooth Smart for setup, monitoring and firmware updates through VictronConnect.

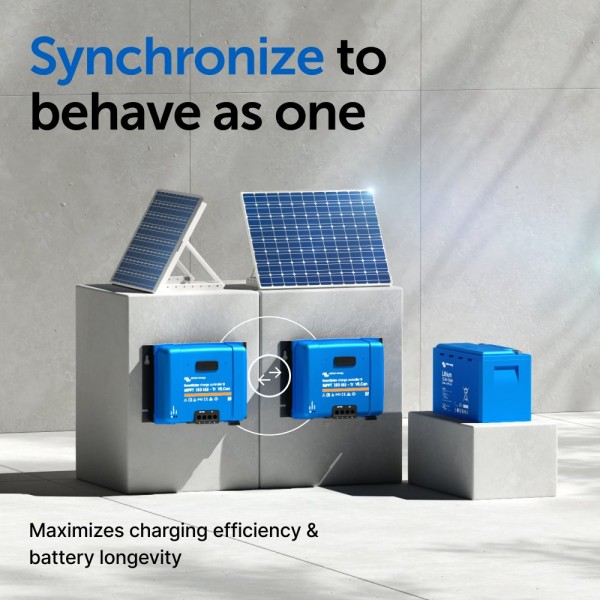

• Synchronized parallel operation of up to 25 controllers via VE.Can or up to 10 controllers via Bluetooth.
• Remote on/off through a 2-pole terminal.
• Programmable relay for alarms and other system events.

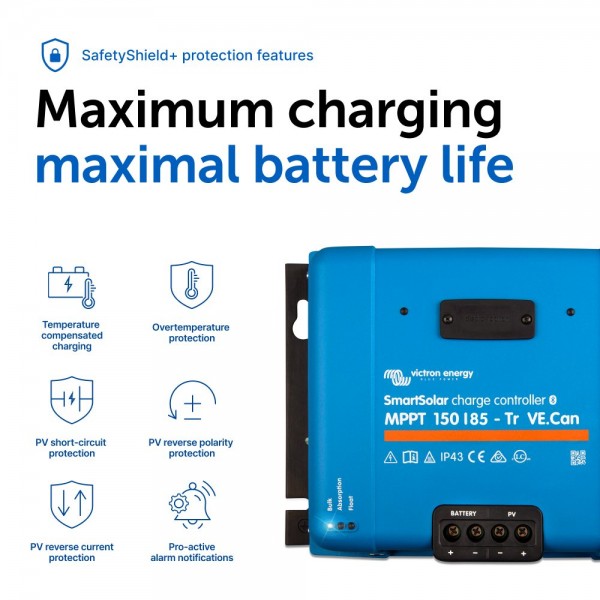

• Protection against PV reverse polarity, output short circuit and over-temperature.
• Operating temperature from -30°C to +60°C, with full rated output up to 40°C.

Applications

Victron Energy SmartSolar MPPT 150/85-Tr VE.Can is designed for medium and large solar systems with 12 V, 24 V, 36 V or 48 V battery banks. It is suitable for campervans and caravans, marine installations, professional vehicles, off-grid solar systems and stationary energy systems where high charging current and Victron Energy network integration are required.

Technical specifications

• Manufacturer: Victron Energy
• Model: SmartSolar MPPT 150/85-Tr VE.Can
• SKU / Part number: SCC115085411
• EAN: 8719076050339
• Type: MPPT solar charge controller
• Battery voltage: 12/24/48 V auto-select; 36 V manual selection
• Maximum battery charge current: 85 A
• Maximum PV open-circuit voltage: 150 V absolute maximum under the coldest conditions; 145 V maximum at startup and during operation
• Maximum PV short-circuit current: 70 A
• Nominal PV power at 12 V: 1200 W
• Nominal PV power at 24 V: 2400 W
• Nominal PV power at 36 V: 3600 W
• Nominal PV power at 48 V: 4900 W
• Maximum efficiency: 98%
• Self-consumption: less than 35 mA at 12 V; less than 20 mA at 48 V
• Default absorption voltage: 14.4 / 28.8 / 43.2 / 57.6 V, adjustable
• Default float voltage: 13.8 / 27.6 / 41.4 / 55.2 V, adjustable
• Default equalization voltage: 16.2 / 32.4 / 48.6 / 64.8 V, adjustable; equalization is disabled by default
• Charging algorithm: multi-stage adaptive; eight pre-programmed algorithms or a user-defined algorithm
• Temperature compensation: -16 / -32 / -48 / -64 mV/°C depending on system voltage
• PV connection: screw terminals, Tr version
• PV terminal capacity: 35 mm² / AWG2
• Battery terminal capacity: 35 mm² / AWG2
• Protection rating: IP43 for electronic components; IP22 for the connection area
• Operating temperature: -30°C to +60°C; full rated output up to 40°C
• Humidity: 95%, non-condensing
• Maximum altitude: 5000 m; full rated output up to 2000 m
• Environmental condition: indoor, unconditioned
• Pollution degree: PD3
• Colour: blue, RAL 5012
• Dimensions H × W × D: 216 × 295 × 103 mm
• Weight: 4.5 kg
• Standards and certifications: EN/IEC 62109-1, UL 1741, CSA C22.2

Connectivity and control

• Bluetooth Smart: built in for setup, monitoring and firmware updates through the VictronConnect app.
• VE.Can: connection to GX devices and synchronized operation of up to 25 controllers.
• VE.Direct: wired communication with Victron Energy devices, computers or other compatible systems.
• VE.Smart Networking: wireless synchronization with compatible SmartSolar controllers and use of data from a Smart Battery Sense, BMV-712 Smart Battery Monitor or SmartShunt.
• Parallel operation: synchronized through VE.Can or Bluetooth.
• Remote control: remote on/off through a 2-pole connector.
• Programmable relay: DPST; up to 4 A at 240 VAC, up to 4 A at 35 VDC or up to 1 A at 60 VDC.
• Optional display: compatible with the SmartSolar pluggable LCD display.
