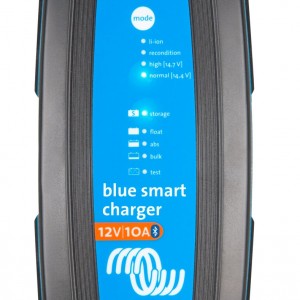

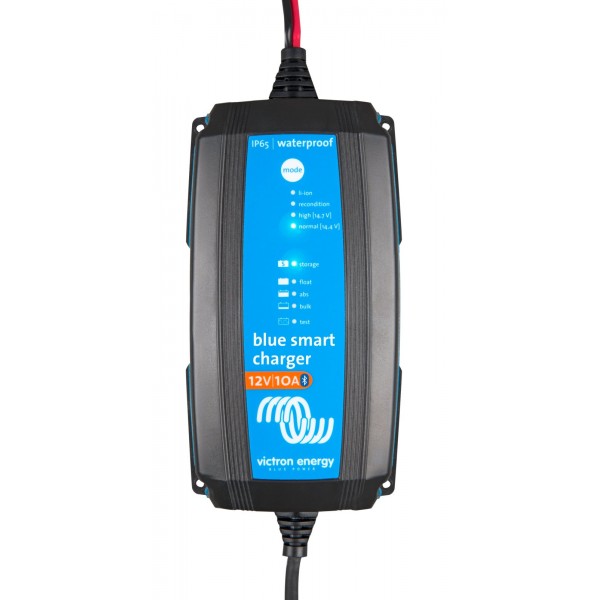

Victron Blue Smart IP65 Charger 12/10 + DC connector

Victron Energy Blue Smart IP65 Charger 12/10 + DC connector is a professional smart battery charger for 12 V lead-acid and LiFePO4 batteries, delivering up to 10 A of charging current. It operates from a 230 V AC supply, features an IP65 water-, dust- and chemical-resistant enclosure, and is designed for reliable charging and long-term maintenance of starter and service batteries.

Built-in Bluetooth enables setup, monitoring and charging-history review through the VictronConnect app for Android and iOS. The seven-stage adaptive charging algorithm, dedicated lithium and lead-acid profiles, automatic recovery of deeply discharged batteries and power-supply mode make this charger a practical choice for motorhomes, caravans, cars, boats, motorcycles and other mobile systems.

Key benefits

• 10 A maximum charging current for 12 V batteries.
• Up to 95% efficiency and less than 0.5 W standby consumption.
• Seven-stage adaptive charging algorithm with test, bulk, absorption, float and storage phases.
• Suitable for lead-acid, AGM, gel, flooded and LiFePO4 batteries through dedicated charging profiles.
• Low power mode with reduced current for smaller batteries.
• Recondition mode to help restore suitable lead-acid batteries.
• Power supply mode for a stable DC output with or without a battery connected.
• Automatic detection and recovery of deeply discharged batteries, including charging from 0 V.
• Temperature-compensated charging for reliable operation across a wide temperature range.
• Fanless passive cooling with no moving parts.
• SafetyShield+ protection against reverse polarity, output short circuit and overheating.
• IP65 enclosure protection against dust, water splashes and chemical exposure.

Applications

The Victron Energy Blue Smart IP65 Charger 12/10 is suitable for charging and maintaining batteries in motorhomes, caravans, cars, motorcycles and boats. Its Storage mode makes it suitable for extended seasonal storage, keeping the battery charged while reducing long-term stress.

Connectivity and control

• Built-in Bluetooth Smart for wireless connection to a smartphone or tablet.
• VictronConnect enables charging-profile selection and adjustment, real-time voltage and current monitoring, history review and firmware updates.
• Bluetooth specifications: -4 dBm, 2402–2480 MHz.
• No VE.Direct, VE.Can, VE.Bus or VE.Smart Networking interface is specified for this model.

Technical specifications

• Product: Blue Smart IP65 Charger 12/10 + DC connector
• SKU / part number: BPC121031064R
• EAN: 8719076017981
• Nominal battery voltage: 12 V
• Maximum charging current: 10 A
• Recommended battery capacity: 30–100 Ah
• Input voltage: 100–250 V AC
• Input frequency: 45–65 Hz
• Efficiency: up to 95%
• Standby power consumption: less than 0.5 W
• Minimum battery voltage for charging: starts charging from 0 V
• Charging algorithm: seven-stage adaptive
• Modes: Normal, High, Li-ion, Recondition, Low power, Power supply and Storage
• Absorption voltage: Normal 14.4 V; High 14.7 V; Li-ion 14.2 V
• Float voltage: Normal 13.8 V; High 13.8 V; Li-ion 13.5 V
• Storage voltage: Normal 13.2 V; High 13.2 V; Li-ion 13.5 V
• Low current mode: 3 A
• Temperature compensation: 16 mV/°C for lead-acid batteries
• Operating temperature: -30°C to +50°C; full rated output up to 30°C
• Humidity: maximum 95%, non-condensing
• Protection rating: IP65
• Cooling: natural convection
• Protections: reverse polarity, output short circuit and overtemperature
• Dimensions H × W × D: 60 × 105 × 190 mm
• Weight: 0.9 kg
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2, EN 55014-2, EN 61000-6-1, EN 61000-6-2 and EN 61000-3-3
• Automotive certification: ECE R10-6

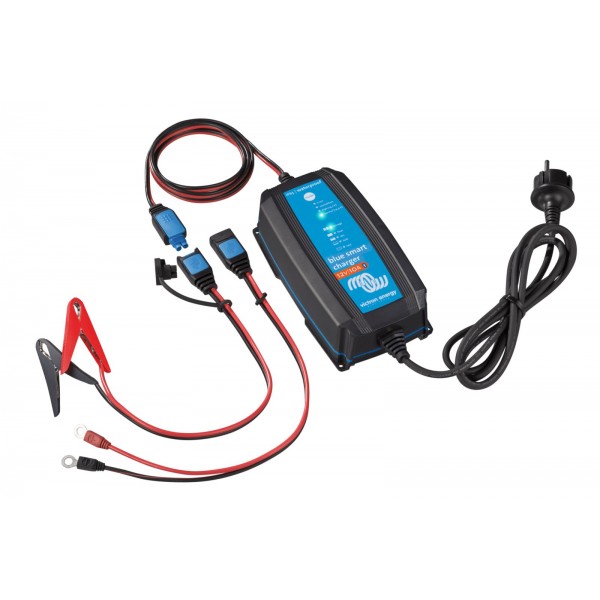

Package contents

• Blue Smart IP65 Charger 12/10
• DC connector with cable clamps and M8 eyelet connectors
• Power cable with European CEE 7/17 plug
