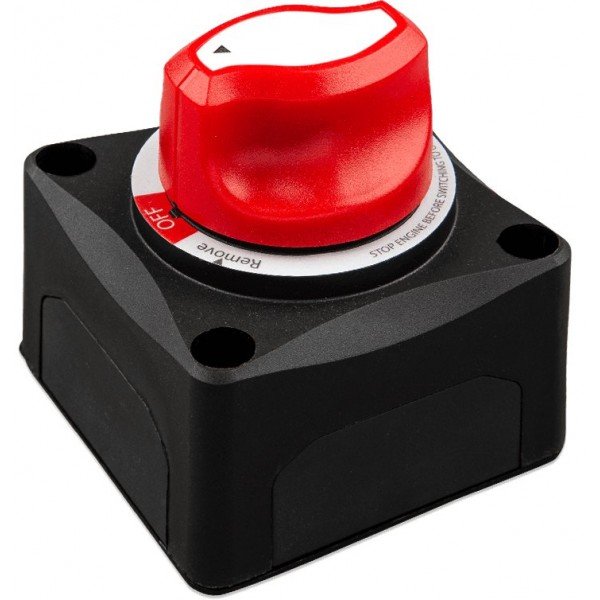

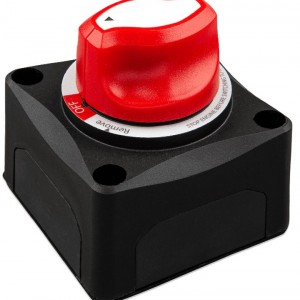

Victron Main Battery Switch ON/OFF 275A

Victron Energy Battery Switch ON/OFF 275A – battery system isolator is a high-current mechanical switch for isolating a battery from DC loads and charging sources. It is suitable for battery systems up to 48 V and provides a continuous current rating of 275 A.

The switch can be surface mounted or rear-panel mounted, making it suitable for installation in campervans, caravans, boats, yachts, professional vehicles and stationary DC systems. Its ergonomic rotary knob can be removed in the OFF position to help prevent accidental operation during servicing or while the system is unattended.

Key benefits

• Suitable for battery systems up to 48 V.
• 275 A continuous current rating.
• 455 A rating for 5 minutes.
• 1250 A cranking rating for 10 seconds.
• Maximum DC operating voltage of 60 V.
• Surface or rear-panel mounting.
• Removable knob for safe isolation and prevention of accidental switching.
• ON, OFF and Remove positions.
• Glass-fibre-reinforced nylon base.
• Tin-plated copper terminals and hex nuts.
• Complies with ISO8846 and SAE J1171 ignition-protection requirements.
• Suitable for installation in an engine room.

Applications

Victron Energy Battery Switch ON/OFF 275A is designed for main battery isolation in campervans, caravans, boats and yachts, professional vehicles, off-grid energy systems and other high-current DC installations. It can also be used as an emergency parallel switch between a starter battery and a service battery when required by the system design.

Technical specifications

• Manufacturer: Victron Energy
• Product: Battery Switch ON/OFF 275A
• SKU: VBS127010010
• Group: Lynx and DC distribution
• Type: mechanical battery system switch
• Suitable for systems: up to 48 V
• Maximum DC operating voltage: 60 V
• Continuous current rating: 275 A
• 5-minute current rating: 455 A
• Cranking rating: 1250 A for 10 seconds
• Terminals: M10, 3/8″ / 9.53 mm
• Terminal material: tin-plated copper
• Hex nut material: tin-plated copper
• Recommended torque: 8 Nm
• Base material: glass-fibre-reinforced nylon
• Mounting: surface or rear-panel mount
• Dimensions: 69.5 × 76.3 × 69.5 mm (L × W × H)
• Weight: 0.2 kg
• Ignition protection: ISO8846 / SAE J1171

Operation and safety

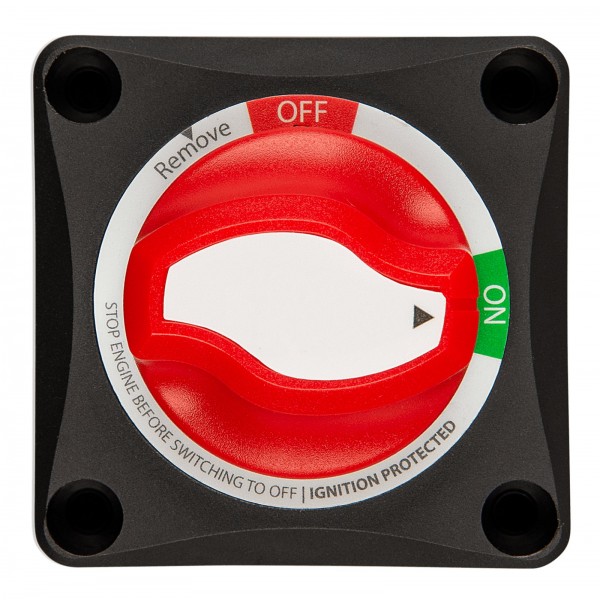

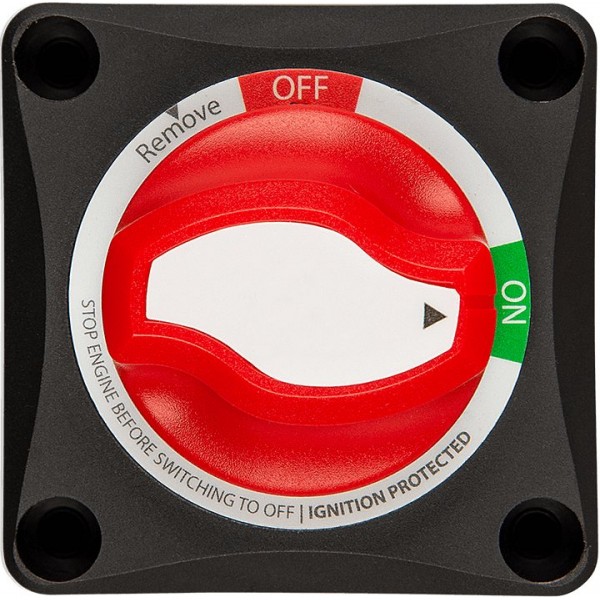

Turn the knob clockwise to switch ON and counter-clockwise to switch OFF. Once the OFF position is reached, the knob can be turned further and removed. With the knob removed, the switch remains OFF, helping prevent unintended operation during maintenance or while the installation is left unattended.

Engines, chargers and loads connected to the same DC circuit must be switched off before operating the battery switch. The switch is not intended to make or break current under load.

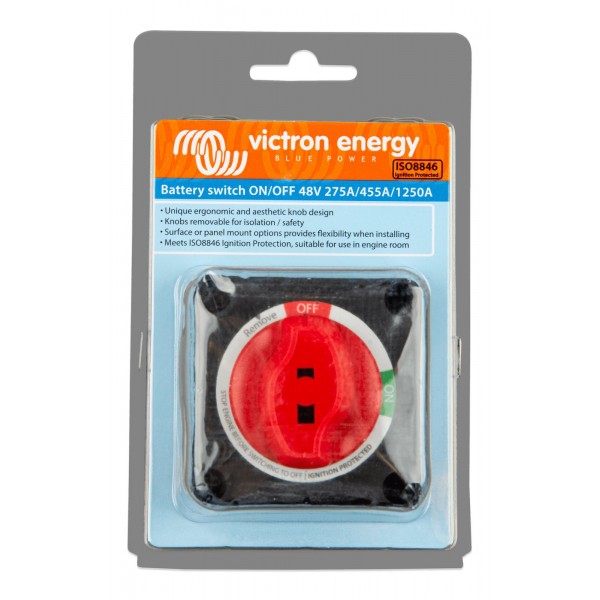

Package contents

The switch is supplied with 16 interchangeable label stickers for identifying different circuits and applications. The design also includes four removable side panels for cable access.
