Victron SmartSolar MPPT 150/70-Tr

Victron Energy SmartSolar MPPT 150/70-Tr is a high-efficiency solar charge controller with Maximum Power Point Tracking (MPPT), designed for photovoltaic systems with 12 V, 24 V, 36 V or 48 V battery banks. It converts available solar energy efficiently and provides a charging current of up to 70 A.

Fast MPPT tracking improves energy yield when sunlight changes or the array is partially shaded. Built-in Bluetooth enables configuration, monitoring and firmware updates through VictronConnect without requiring an additional communication module.

Key benefits

• Maximum PV input: 150 V DC; operating and start-up limit: up to 145 V.
• Maximum battery charging current: 70 A.
• Nominal PV power up to 1000 W at 12 V, 2000 W at 24 V, 3000 W at 36 V and 4000 W at 48 V.
• Peak efficiency of up to 98%.
• Ultra-fast MPPT tracking for improved yield in changing solar conditions.
• Multi-stage adaptive charging algorithm with eight pre-programmed profiles or a user-defined algorithm.
• Suitable for lead-acid and lithium battery systems when the correct charging profile is configured.
• Built-in Bluetooth and a VE.Direct communication port.
• Remote on/off through a two-pole terminal.
• Parallel operation with other controllers is supported, without synchronisation between units.
• Programmable relay for external load control or signalling.

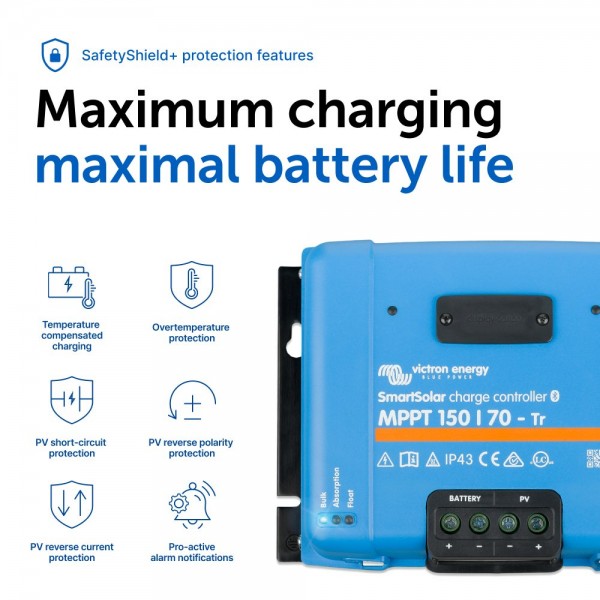

• Protection against PV reverse polarity, output short circuit and overheating.

Applications

Victron Energy SmartSolar MPPT 150/70-Tr is suitable for off-grid and hybrid photovoltaic systems in campervans, caravans, boats and professional vehicles, as well as stationary off-grid installations. Its high charging current makes it suitable for larger battery banks and PV arrays up to the nominal power limits specified for each system voltage.

Technical specifications

• Product: SmartSolar MPPT 150/70-Tr
• SKU: SCC115070211
• Type: MPPT solar charge controller
• Nominal battery voltage: 12/24/48 V with automatic selection; 36 V with manual selection
• Maximum battery charging current: 70 A
• Maximum PV open-circuit voltage: 150 V under the coldest conditions
• Maximum PV voltage for start-up and operation: 145 V
• Maximum PV short-circuit current: 50 A
• Nominal PV power: 1000 W at 12 V; 2000 W at 24 V; 3000 W at 36 V; 4000 W at 48 V
• Minimum PV voltage for start-up: battery voltage + 5 V
• Minimum PV voltage after start-up: battery voltage + 1 V
• Peak efficiency: 98%
• Self-consumption: less than 35 mA at 12 V; less than 20 mA at 48 V
• Absorption voltage: 14.4/28.8/43.2/57.6 V, adjustable
• Float voltage: 13.8/27.6/41.4/55.2 V, adjustable
• Equalisation voltage: 16.2/32.4/48.6/64.8 V; disabled by default
• Temperature compensation: -16/-32/-64 mV/°C according to system voltage
• Operating temperature: -30°C to +60°C
• Full rated output: up to 40°C
• Maximum humidity: 95%, non-condensing
• Maximum altitude: 5000 m; full rated output up to 2000 m
• PV terminals: screw terminals for conductors up to 35 mm² / AWG2
• Battery terminals: 35 mm² / AWG2
• Protection rating: IP43 for electronic components; IP22 for the connection area
• Dimensions: 200 × 250 × 95 mm
• Weight: 3 kg
• Colour: blue, RAL 5012
• Safety standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Connectivity and control

Built-in Bluetooth provides a wireless connection to the VictronConnect app for configuration, live parameter monitoring, history review and firmware updates. The VE.Direct port enables connection to compatible Victron devices, GX communication devices and optional displays or interfaces.

The controller supports VE.Smart Networking for data exchange with compatible Victron devices in a local wireless network, including information sharing from compatible sensors. Remote switching is available through the two-pole remote on/off terminal.
